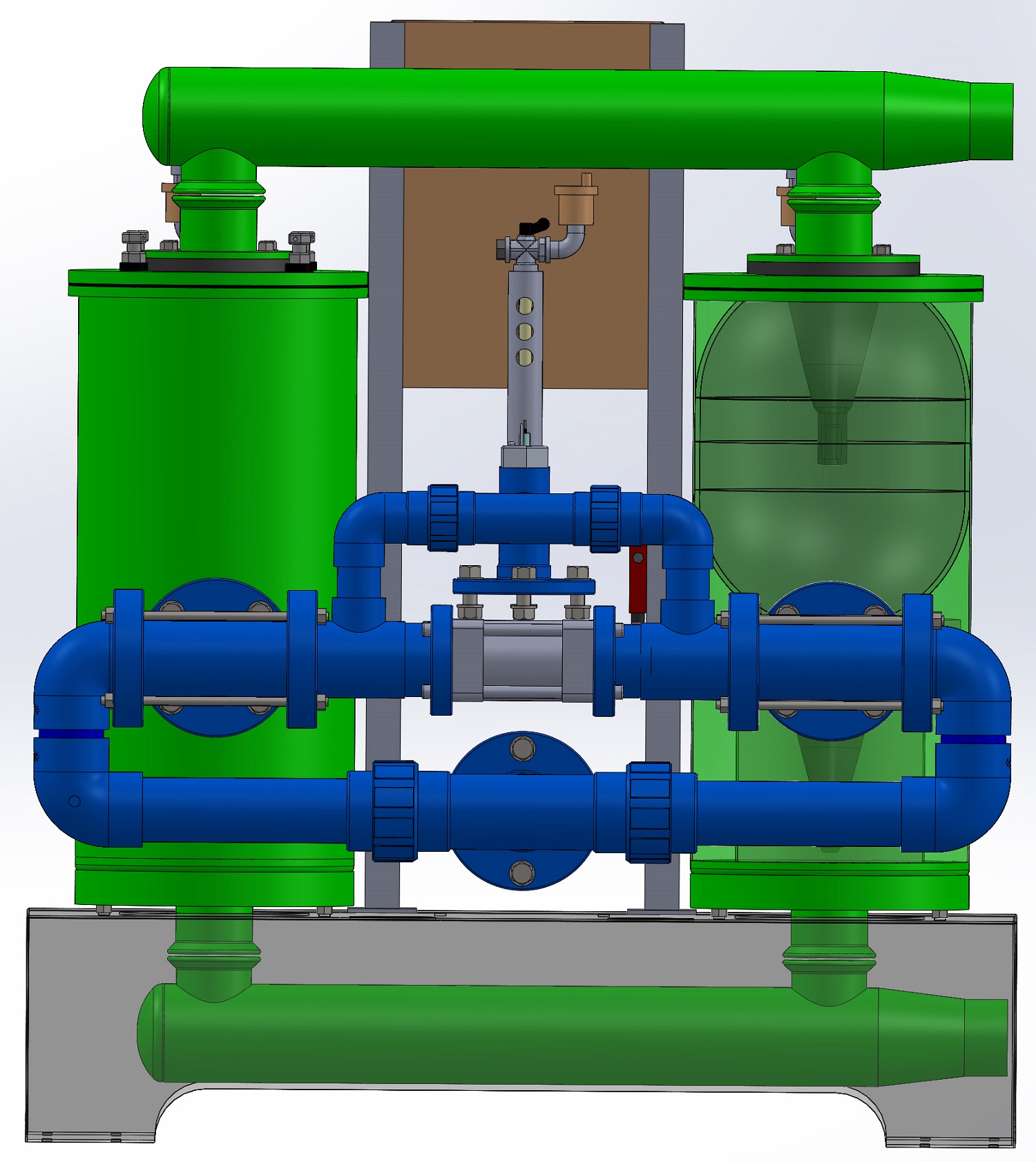

THE TWO CIRCUITS OF A VERY SPECIAL INDUSTRIAL SELF-PRIMING PUMP

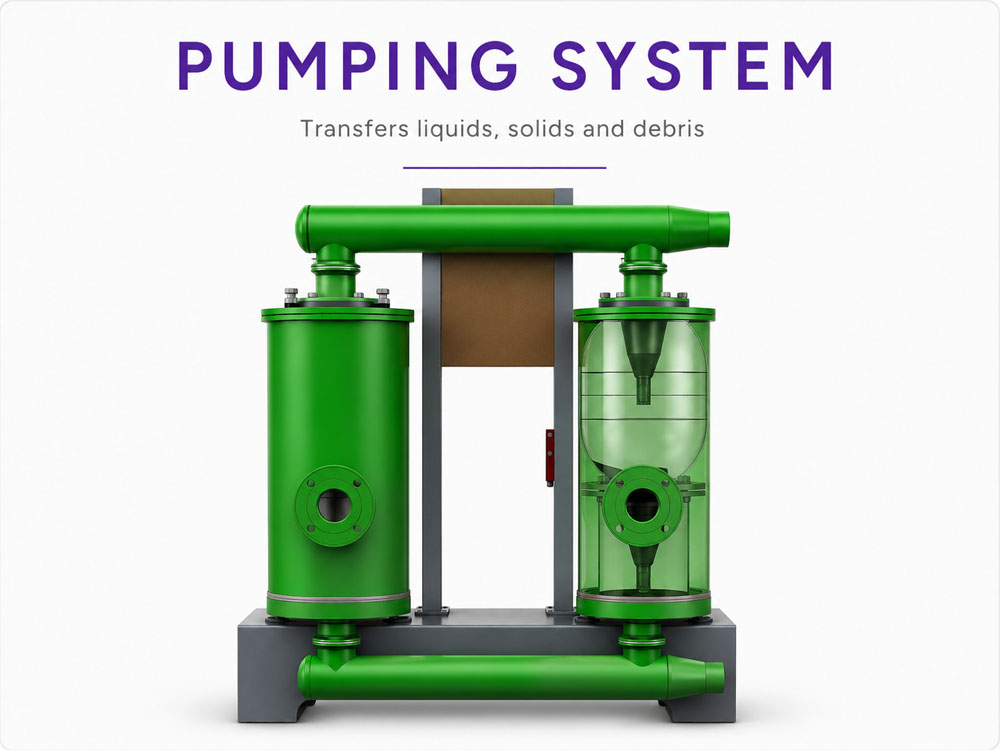

This is the circuit devoted exclusively to product transfer. The cylinder contains the service liquid in which the lung and sealing valves are immersed. The pumping effect of Tarua ®, is generated by the movement ofthe lung compression and expansion, which occurs due to the displacement of the service liquid (H2O). By introducing the service liquid inside a cylinder, the lung is compressed, (delivery) by extracting the service liquid, the lung expands, creating the vacuum necessary for suction.

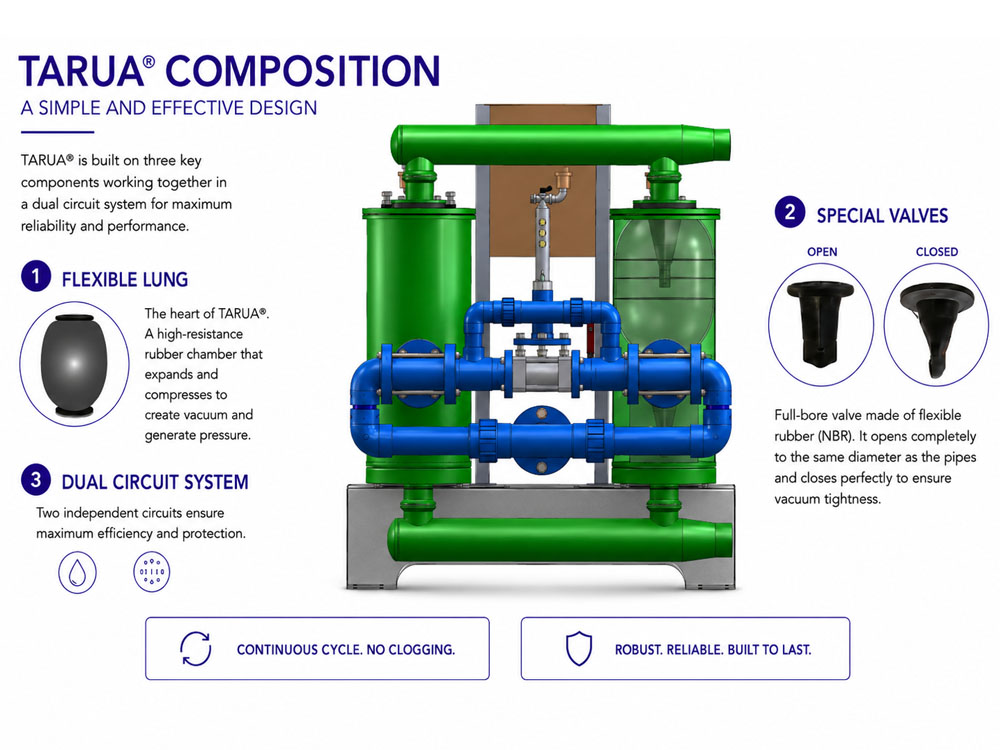

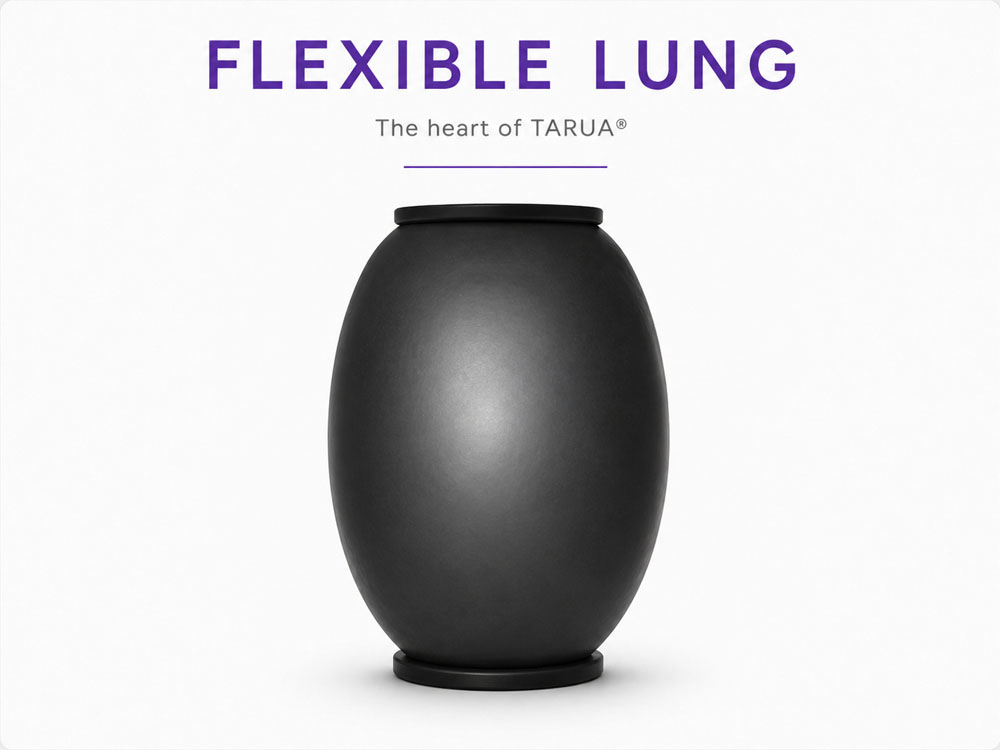

Tarua ® is also a program of industrial volumetric self-priming pumps called “lung pump.” The technological innovation lies in the lung-valve combination. The lung is made of NBR rubber because it must be flexible and resist the continuous and fast movement of compression and expansion. It is sixteen times larger than the diameter of the valve to accommodate large bodies and accompany them smoothly to the outlet in the compression phase. It was designed and manufactured exclusively by Ideas & Products.

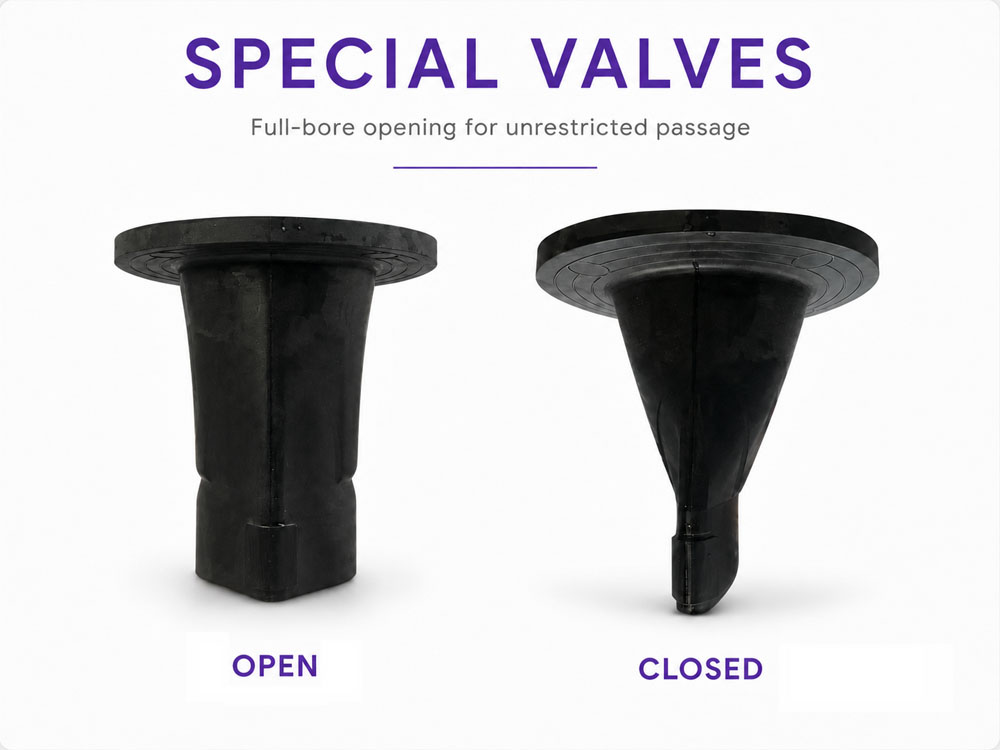

La Kodrill check valve plays a very important role in the operation of Tarua ® industrial self-priming pumps . Installed at both ends of the lung, it allows both to close the lung and to allow large solids to pass through smoothly so that they do not become stuck. It is made of NBR rubber because it must be flexible. It must open fully (up to the diameter of the suction pipe) and close tightly to ensure a vacuum seal. In the closed state, it looks like a normal gooseneck valve.

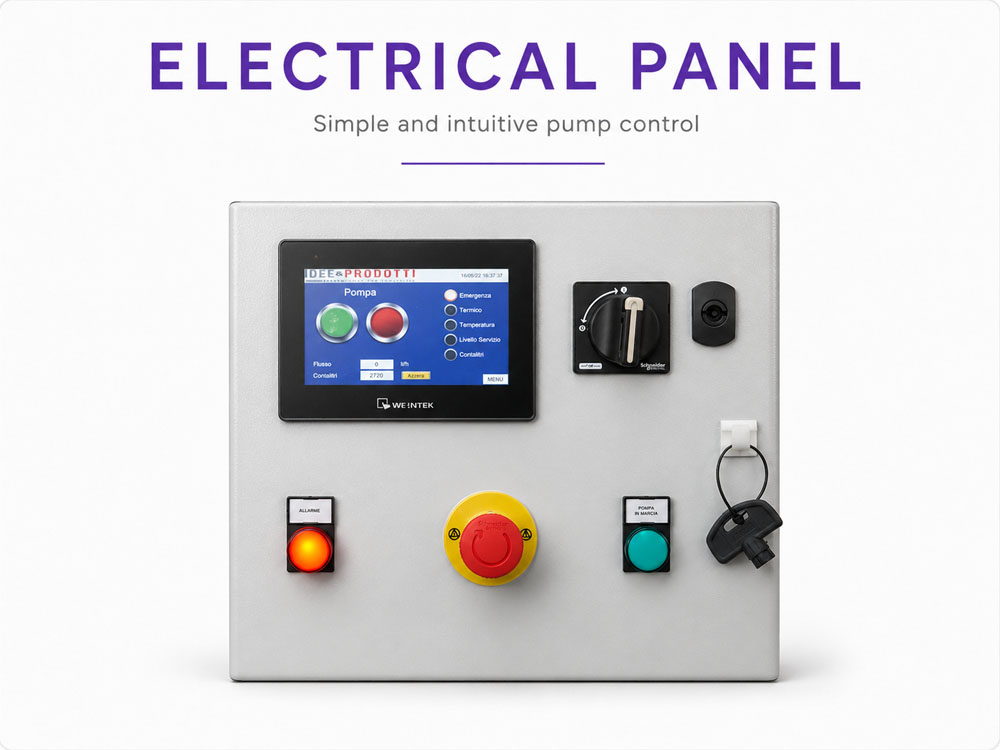

The Tarua ® self-priming pump is provided in two main versions: the Standard and the Industry 4.0. The two versions feature specific switchboards for remote data management (pictured is the one for Industry 4.0).

Tarua industrial self-priming pump ®️ is designed and manufactured exclusively by Ideas & Products.
